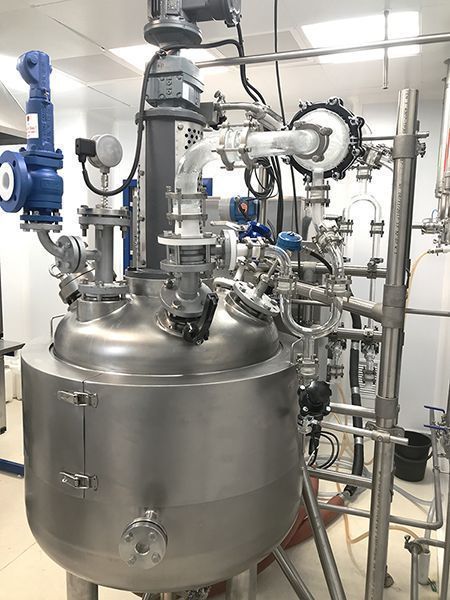

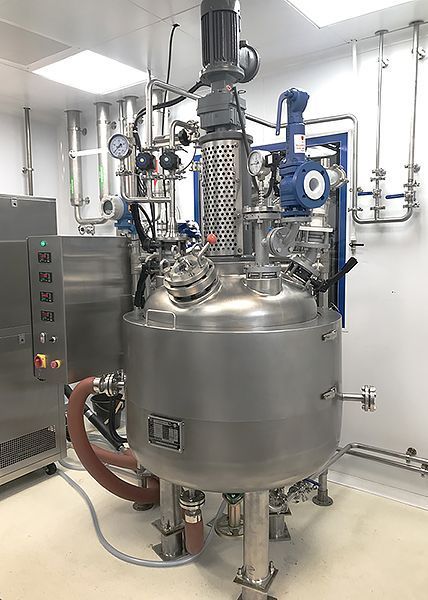

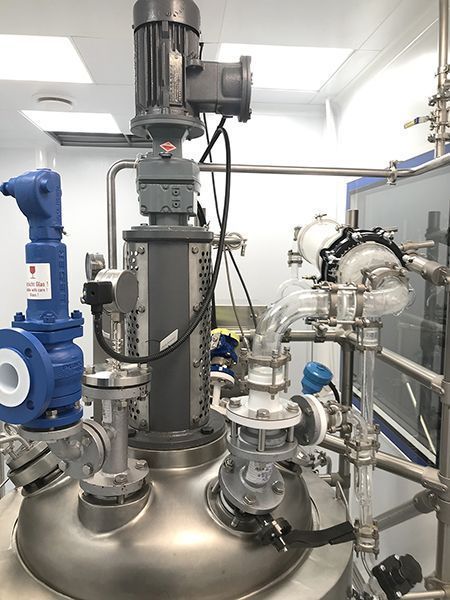

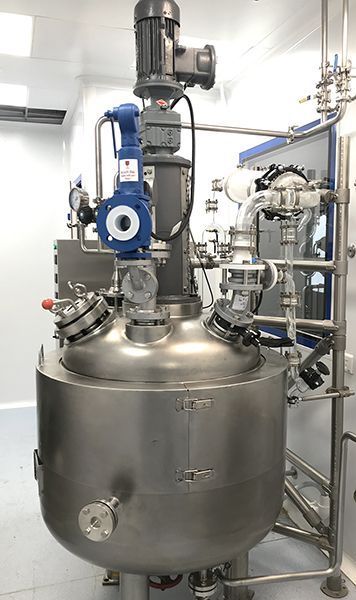

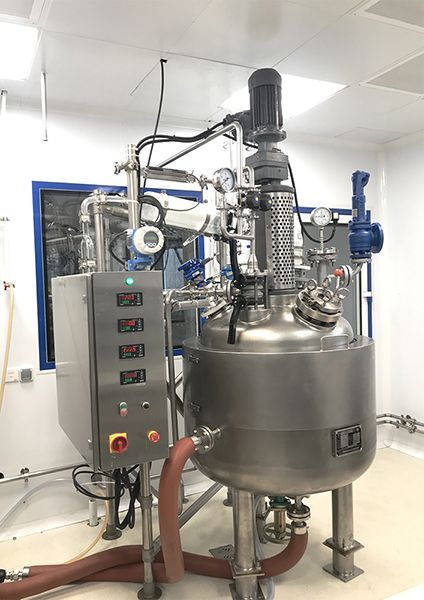

Glass-lined reactors REATORG TECHNOLOGIES™

Operating volume of the glass-lined reactor: from 50 to 5000 l

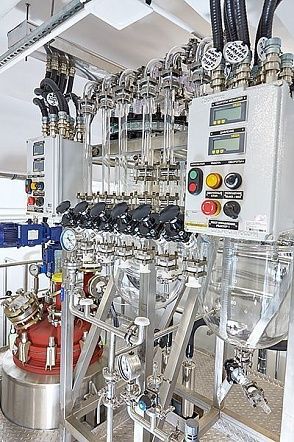

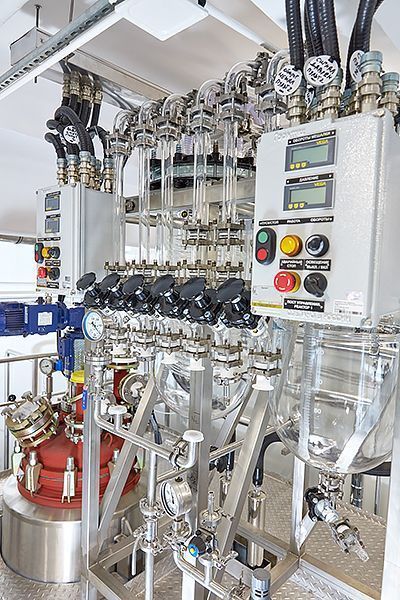

Volume of glass measuring vessels with a jacket and an agitator from 15 to 100 l
Volume of glass measuring vessels without a jacket from 10 to 300 l

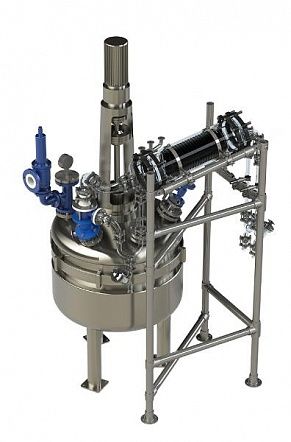

Mounting of glass components on a stainless-steel scaffolding.
Scaffolding: 304L stainless steel
Scaffolding fasteners: 321 alloy steel
Glass condensers, systems for distilling and changing solvent, systems for distillation and rectification can be installed.
Area of glass heat exchangers is from 0.3 to 3.75 m2. It is possible to combine several heat exchangers to increase the heat exchange surface area
It is possible to create several temperature circuits: connecting the main condenser to the cooled water, and the after-cooler to the low-temperature line
Materials in contact with the product: enamel, borosilicate glass 3.3, PTFE, PFA, FFKM, tantalum (pressure gauge). Certificates for material composition are provided
Different set of shut-off, safety and control valves can be installed
Different level of the unit is possible, as well as recording and storage of data.
Explosion-proof design of electrical components (explosion-proof shell (d) and intrinsically safe circuit (i)).
